Week 5: Final Submission: 3 Animations and 7 Images and Google Sketch Up Model

Animations

Images

1

2

3

4

5

6

7

Google Sketch Up Model

Due to size restrictions, my Sketch Up model was unable to be uploaded onto the 3D Warehouse. However, this is a downloadable link of my file.

file upload

Week 5: Final Submission: Final Concept - The Stair

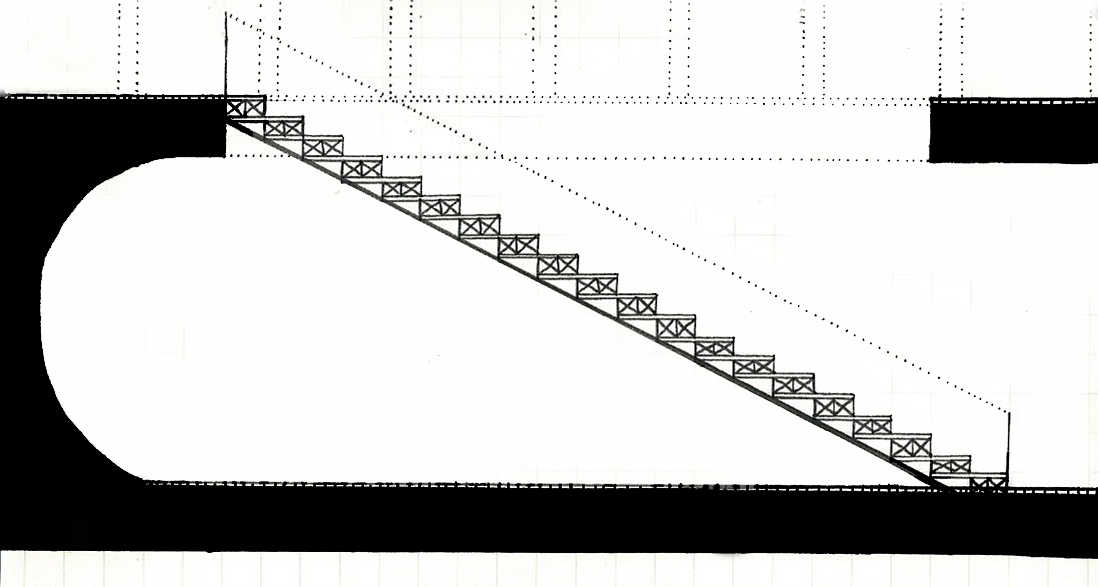

Stair 1: Stair section

Stair 1: Stair section

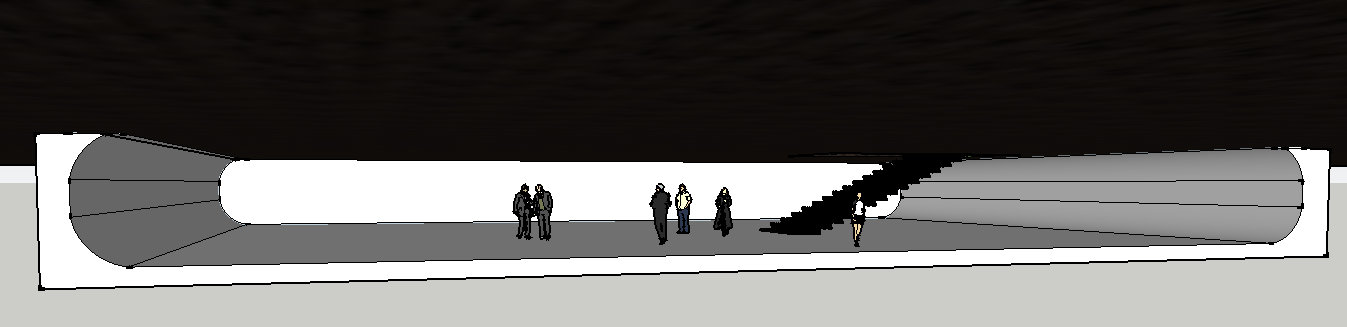

Stair 1: Google Sketch Up

Stair 2: Stair section

Stair 2: Stair section

Stair 2: Google Sketch Up

Week 5: Final Submission: 18 Sketch Sections

First set of sections on page: Final design.
Also, used as draft two before the design approach changed to a great extent and evolved into the final concept.

Second set of sections on page: Draft concept 1

Week 3: Final Submission: 36 Textures and Draft Schemes

 Textures

Hand drawn textures inspired by words that represent the features, qualities and properties of materials.

A combination of wood and marble was utilised in each concept in order to maintain a consistent use of materials throughout the Google Sketch Up model.

Draft Schemes

Concept 1

Concept 1
ABOVE: Inspired by the word "split"

Concept 1
BELOW: Inspired by the word "wooden"

Concept 2

Concept 2
ABOVE: Inspired by the word "wooden"

Concept 2
BELOW: Inspired by the word "FABRIC"

Client works on shapes

Week 2: The Stair

Concept 1

Client 1 - ABOVE: Christian Benner Custom
Client 2 - BELOW: Hazan Motorworks

Materials:

- Concrete structure

- Wooden flooring

- Glass planes

- Steel handrails

- Timber steps

Concept 1
ABOVE: Inspired by the word "split"

Concept 1
BELOW: Inspired by the word "wooden"

Sectional drawings of concept 1

Concept 1: The Stair

Stair 1: Initial concept

Materials:

- Steel enforced concrete treads

- Metal support poles

Stair 1: Google Sketch Up

Original concept materials were adapted to suit final design concept of structure.

Stair 2: Initial concept

Materials:

- Wooden treads

- Steal structural support interior

Stair 2: Google Sketch Up

Concept 2

Client 1 - ABOVE: Hazan Motorworks
Client 2 - BELOW: Christian Benner Custom

Materials:

- Concrete structure

- Wooden flooring

- Glass planes

- Steel handrails

- Timber steps
- Marble display areas

Concept 2
ABOVE: Inspired by the word "Wooden"

Concept 2
BELOW: Inspired by the word "Fabric"

Concept 2: The Stair

Stair one: Initial Concept

Stair one: Google Sketch Up

Stair two: Initial Concept

Stair two: Google Sketch Up
